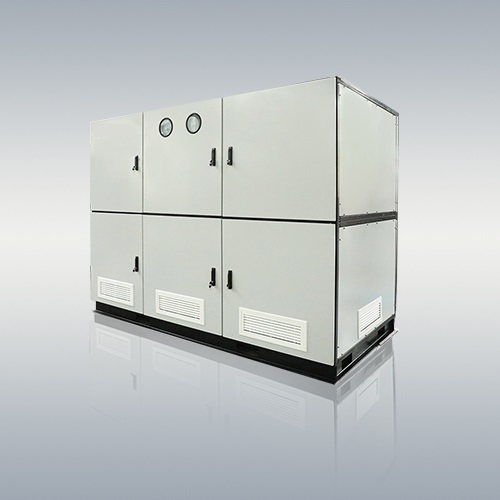

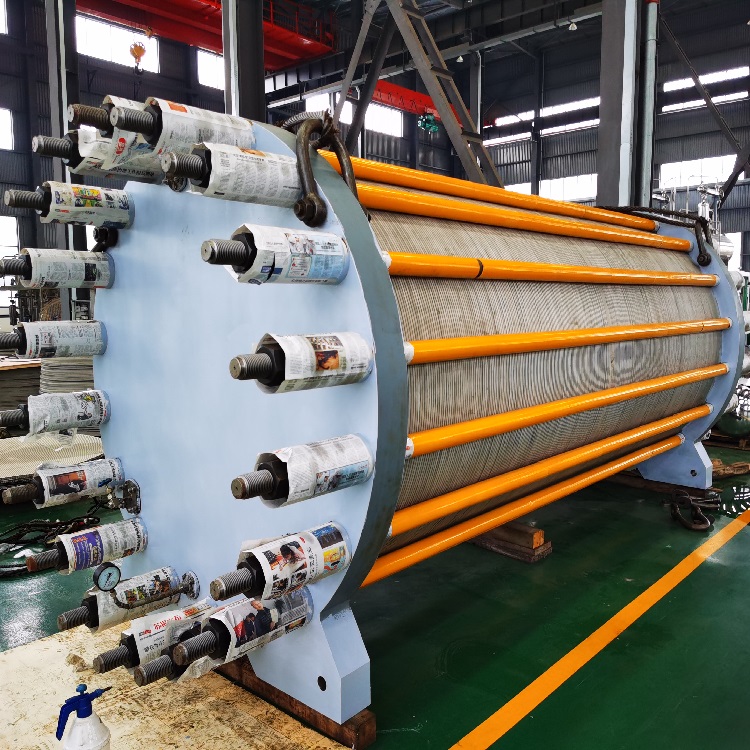

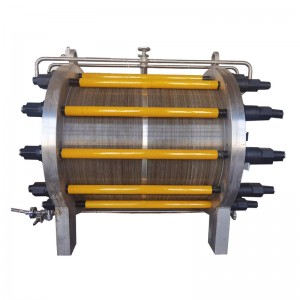

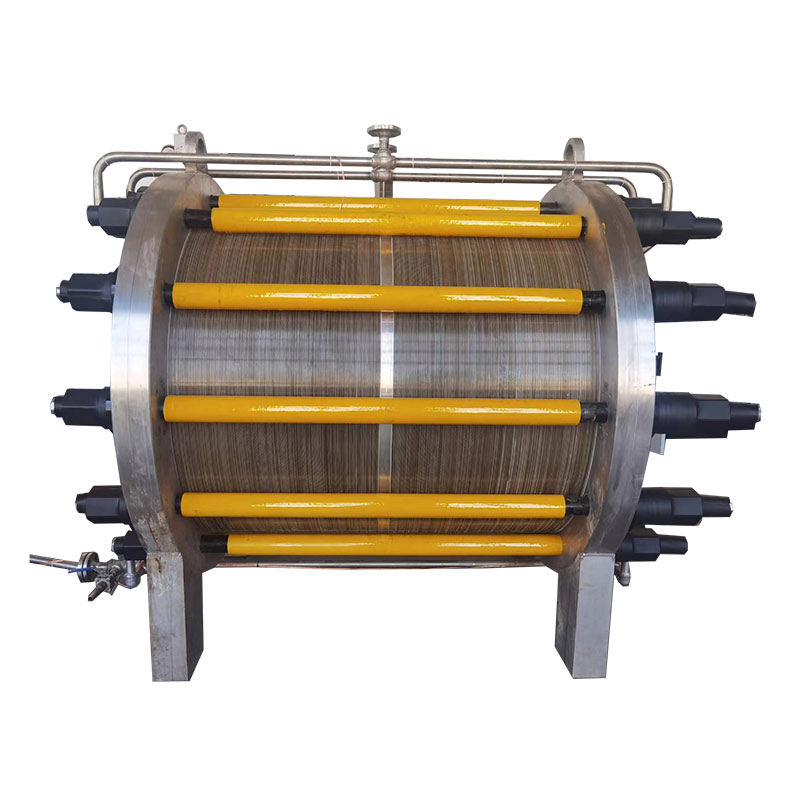

Water electrolyzer, H2 generator for car

Technical parameters:

H2 Capacity: 4-300Nm3/h

H2 Purity: 99.999%

H2 Pressure: 1.6-3.2MPa (refueling pressure: 35/70MPa)

Working temperature: ≤85℃

Feature:
1. Vertex owns core technology of electrolyzer, obtained a number of inventions and utility model patents,
2. The combined design and integration of hydrogen production main body and control frame makes more convenient application.


Product Detail

Product Tags

Product Video

Working Principal

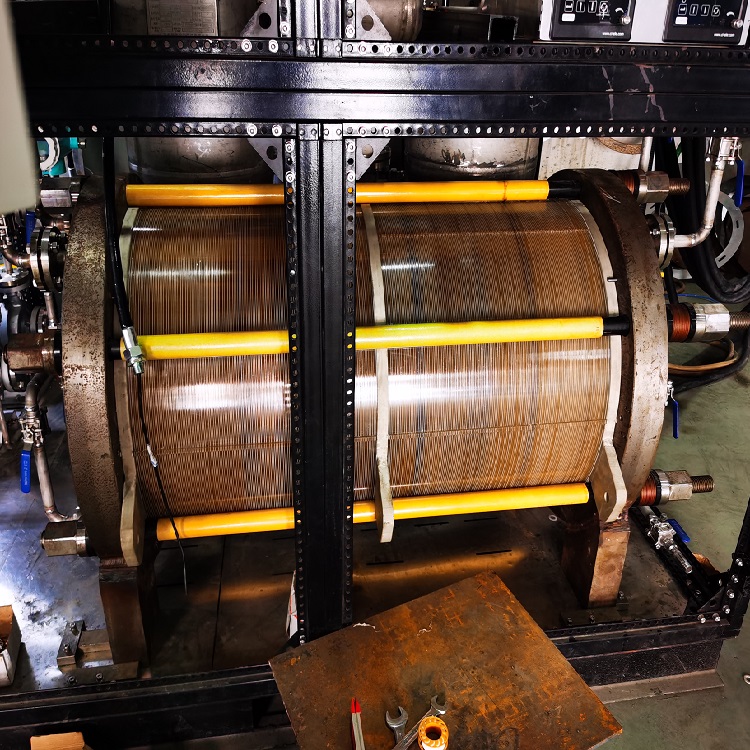

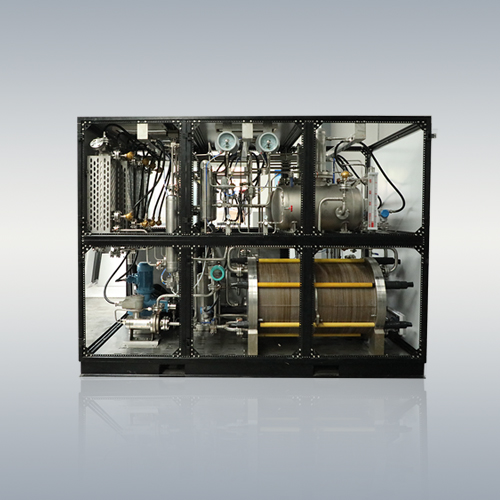

The equipment use water electrolysis to generate pure hydrogen and pure oxygen. By controlling the liquid level of hydrogen / oxygen tank, to ensure the hydrogen purity. It will go through the processes such as hydrogen washing, gas / liquid separation and cooling process to finally produce hydrogen.

working

Apply Scope

CHV series mobile hydrogen fueling station is designed according to client's need, this series can be easily changed to another workplace. It includes water electrolysis hydrogen equipment, medium pressure storage tank and hydrogen fueling system. It applies for the areas there is lack or hydrogen gas. The equipment uses water and electricity to generate pure hydrogen and pure oxygen, the hydrogen purity can reach to 99.9999% and dew point up to -75℃This hydrogen can be used for hydrogen fuel cell drone, car, forklift, van, bus fueling.

Structure Characteristics

1. All the internal environment containing hydrogen adopts explosion-proof treatment, the hydrogen storage tank is isolated separately, and the electrical part is not connected to the hydrogen environment, which meets the national safety standards.
2. The man-machine interface is simple and reliable to ensure the safe use of high-pressure hydrogen.

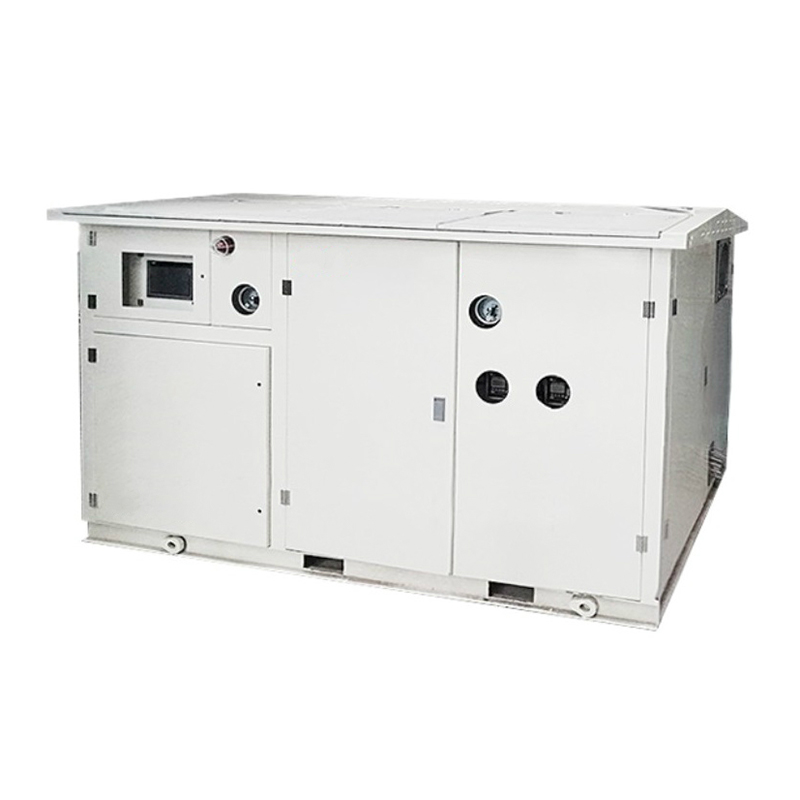

3. Cabinet: It can be made of outdoor type and indoor type.

Specification

Hydrogen generator
MODEL H2 Capacity

Nm3/h

H2 purity Current

(A)

DC

(V)

Working temperature
CHV-4 4 99.999% 760 40 ≤85℃
CHV-10 10 99.999% 760 78 ≤85℃
CHV-20 20 99.999% 1240 90 ≤85℃
CHV-50 50 99.999% 1800 138 ≤85℃
CHV-100 100 99.999% 4600 110 ≤85℃
CHV-200 200 99.999% 6600 150 ≤85℃
CHV-300 300 99.999% 6600 225 ≤85℃
Medium pressure hydrogen storage
Storage volume Pressure
40L, 200L, 400L

1-50m2

1.6 or 3.2MPa
Hydrogen refueling
Before/after pressure Refueling rate
From 1.6-3.2MPa

Final 35-70MPa

30min-24H
