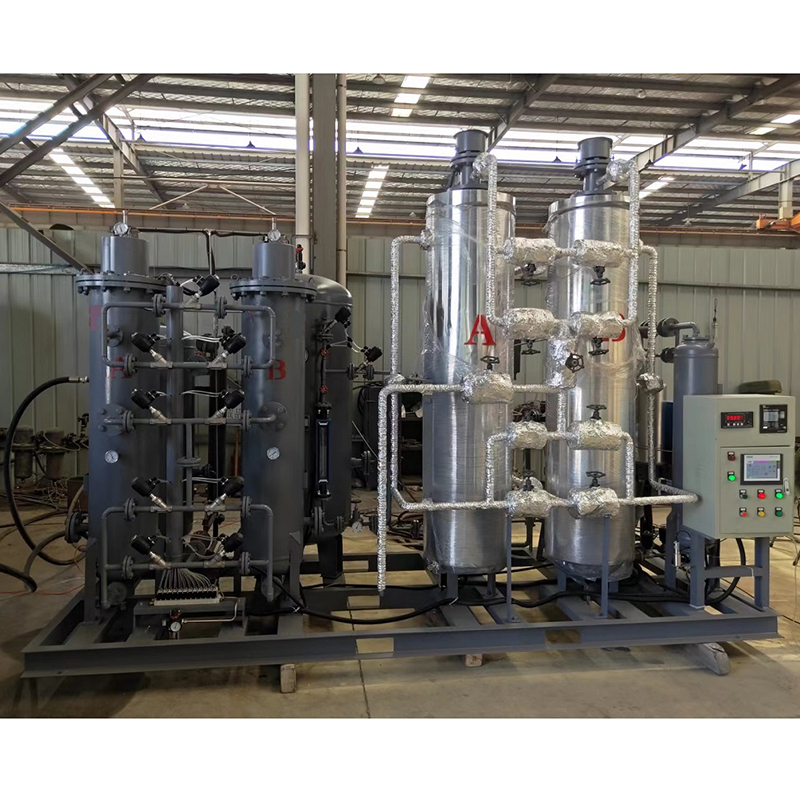

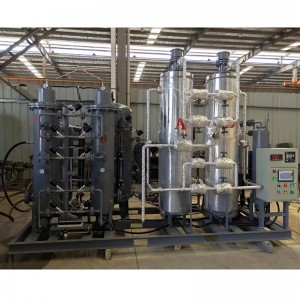

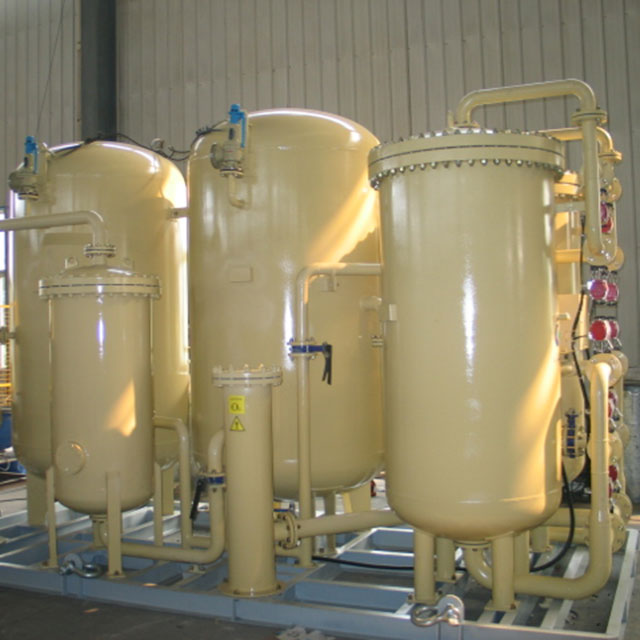

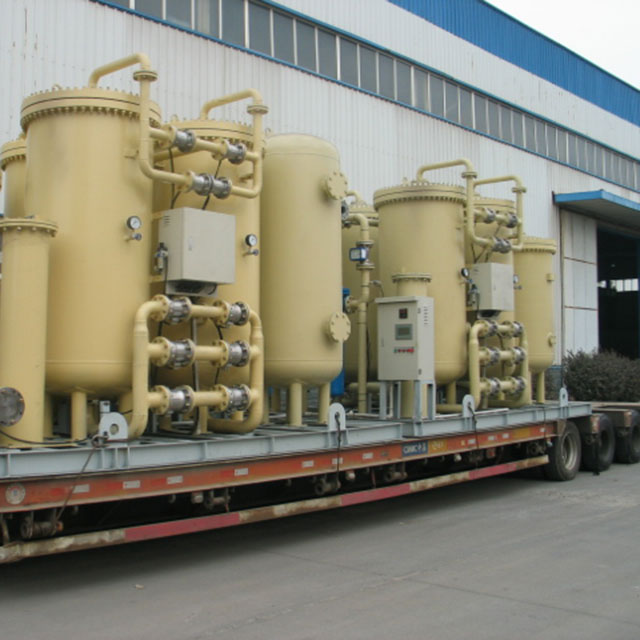

PSA Nitrogen generator Nitrogen production plant

Technical parameters:

N2 Capacity: 5 ~ 3000Nm3/h

N2 Purity: 95% ~ 99.999%

N2 Pressure: 0.1 ~ 0.8 MPa(Adjustable)

Dew point:-40ºC or -60ºC

Feature:

1. The equipment has the advantages of low energy consumption, low cost, strong adaptability, fast gas production and easy adjustment of purity.

2. Perfect process design and best use effect;

3. Modular design is designed to save land area.


Product Detail

Product Tags

Product Video

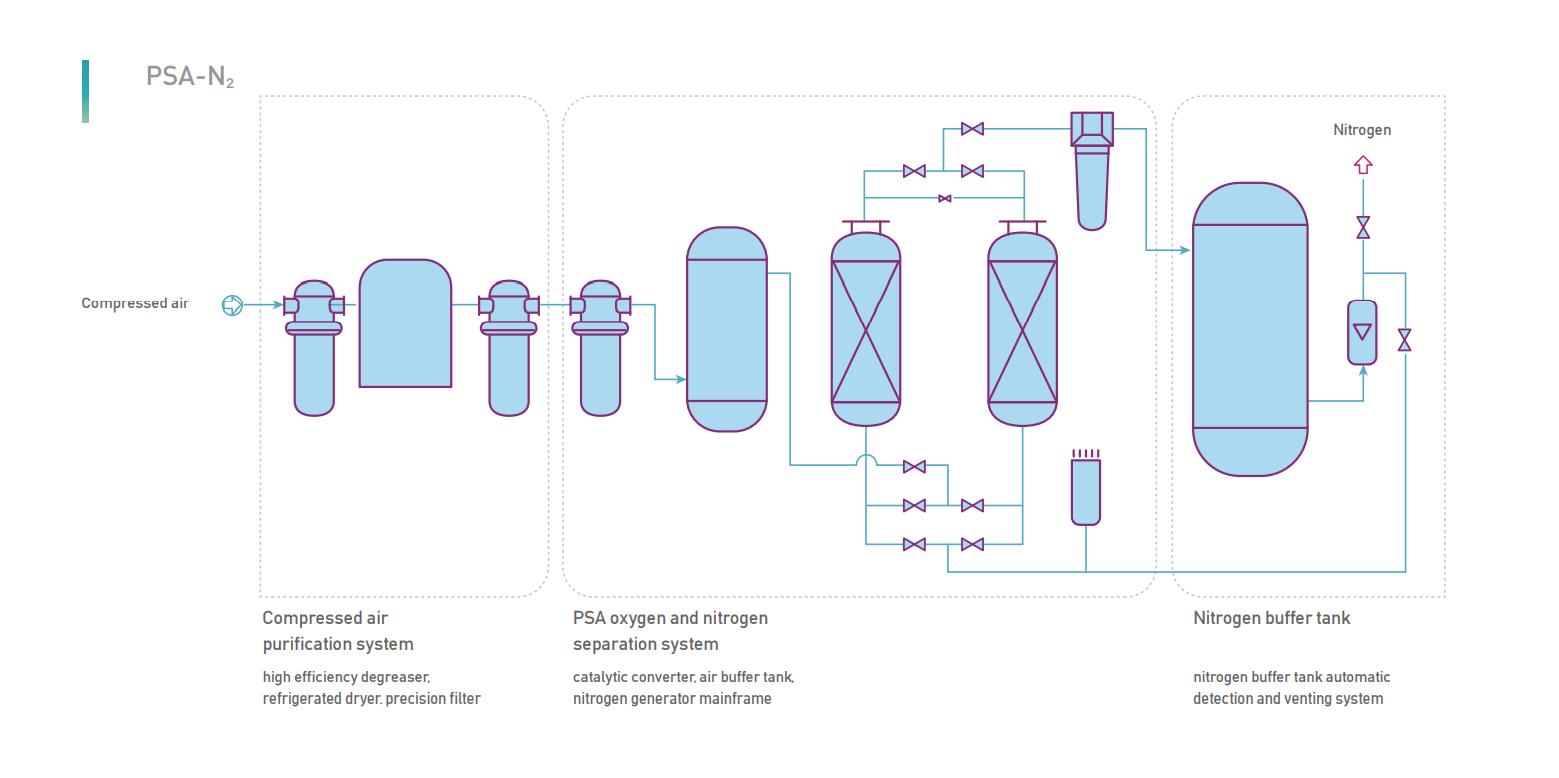

Process

Technical characteristics

1. Special carbon molecular sieve protection measures to extend the life of carbon molecular sieve.
2. The key components of famous brands are the effective guarantee of equipment quality.
3. The automatic emptying device of national patent technology guarantees the nitrogen quality of finished products.
4. It has many functions of fault diagnosis, alarm and automatic processing.
5. Optional touch screen display, dew point detection, energy saving control, DCS communication and so on.

Specification

Model N2 capacity

Nm3/h

Effective air consumption

Nm3/min

Air purification system Inlet and outlet diameter structure
SPN-5 5 0.24 KJ-0.5 DN15 DN15 A
SPN-10 10 0.47 KJ-0.5 DN15 DN15
SPN-20 20 0.94 KJ-1 DN25 DN25
SPN-60 60 2.82 KJ-3 DN32 DN40 B
SPN-100 100 4.7 KJ-6 DN40 DN40
SPN-200 200 9.4 KJ-10 DN50 DN50
SPN-400 400 18.8 KJ-20 DN65 DN50
SPN-800 800 37.6 KJ-40 DN100 DN65
SPN-1200 1200 56.4 KJ-60 DN125 DN80 C
SPN-1500 1500 70.5 KJ-80 DN150 DN80
SPN-2000 2000 94.0 KJ-100 DN150 DN80
SPN-2500 25000 117.5 KJ-120 DN150 DN100

Application

app
