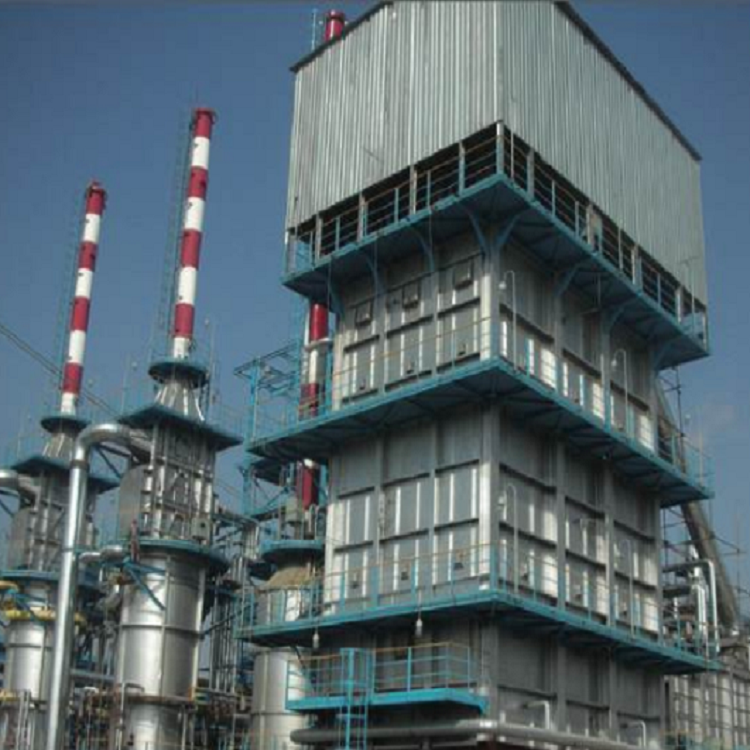

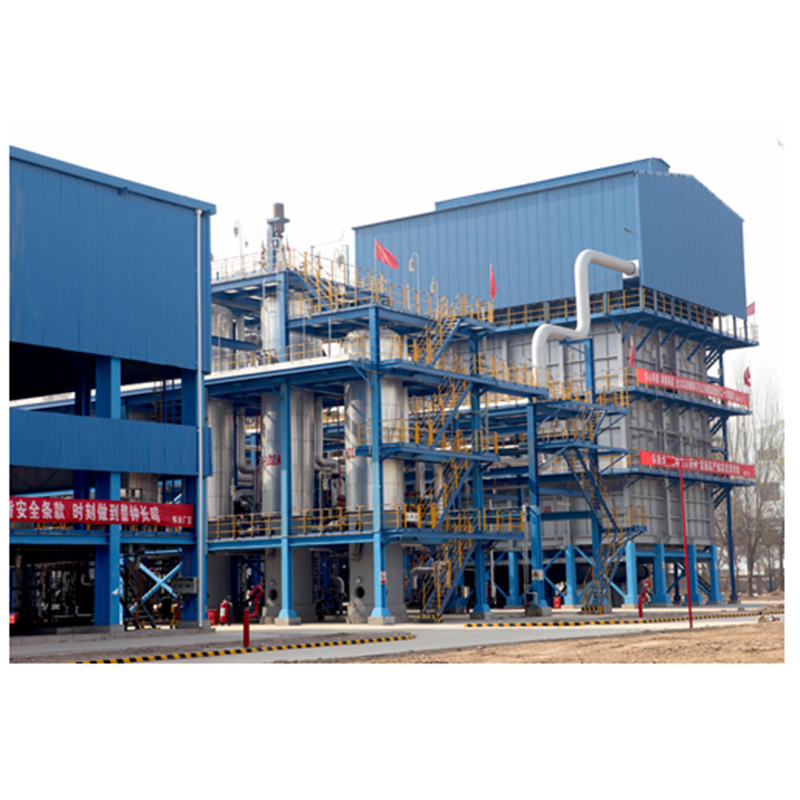

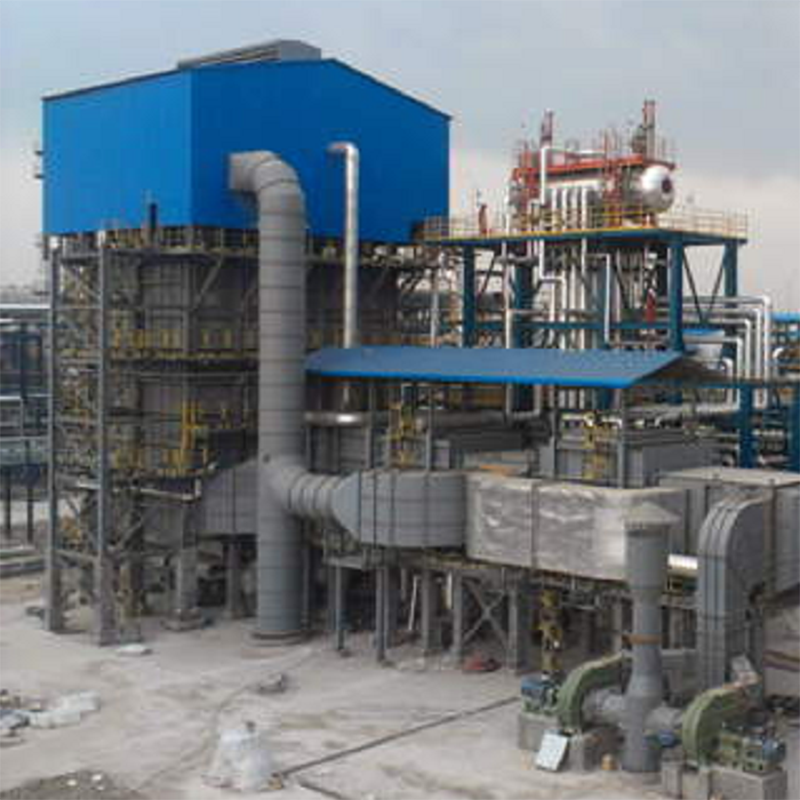

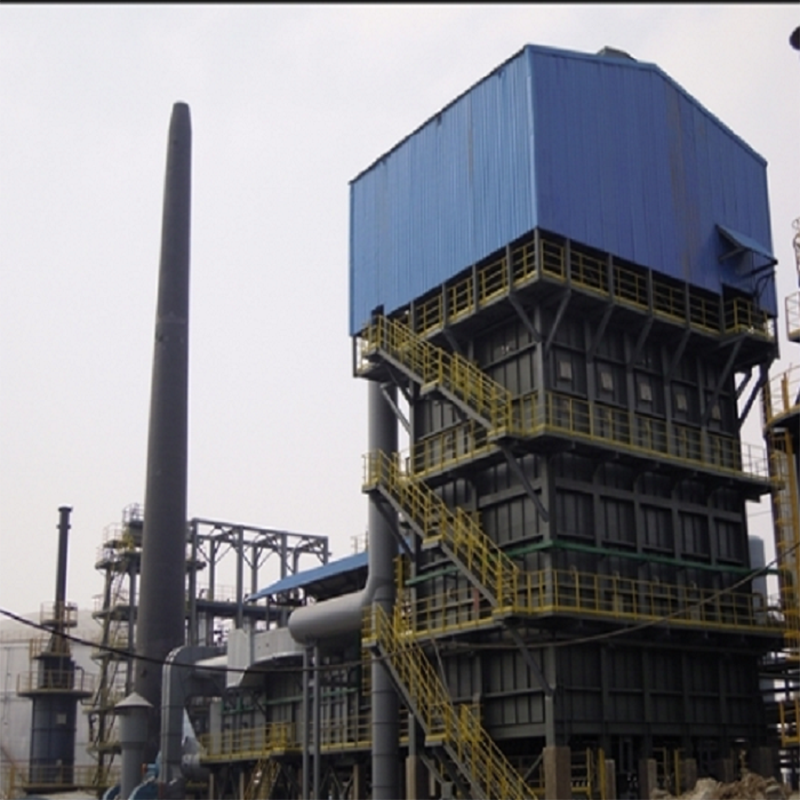

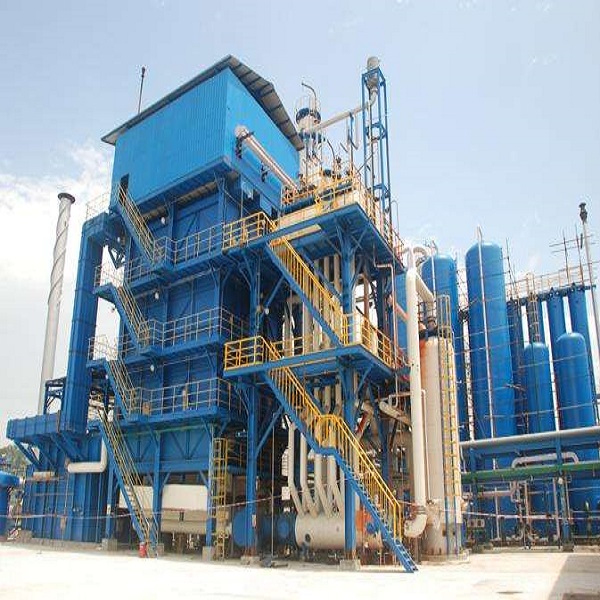

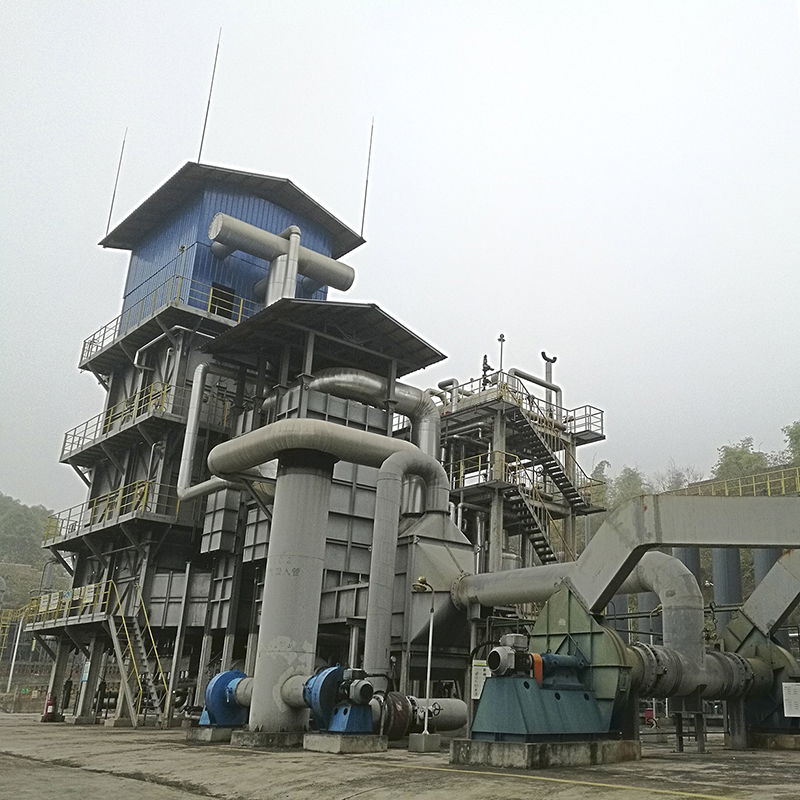

Natural Gas Steam Hydrogen Production Plant Hydrogen Generator for Car

Mature technology, safe and reliable

Reliable and practical operation, high automation

Cheap operation cost and short recovery period.

Reduced fuel consumption and exhaust emission by PSA desorbed gas burn-backing


  • Feedstock : Gas mixture
  • Capacity: 50-200000Nm3/h
  • Pressure : 1.0~2.5MPa
  • H2 Purity: 99%~99.999%
  • Product Detail

    Product Tags

    Technical Features

    Mature technology, safe and reliable
    Reliable and practical operation, high automation
    Cheap operation cost and short recovery period.
    Reduced fuel consumption and exhaust emission by PSA desorbed gas burn-backing

    Product Parameters

    Capacity

    10~50000Nm3/h

    H2 Purity

    99%~99.999%

    Pressure

    1.0~2.5MPa

    Feedstock

    Natural Gas

    Process

    Steam Reforming, PSA

    Specification

    p1

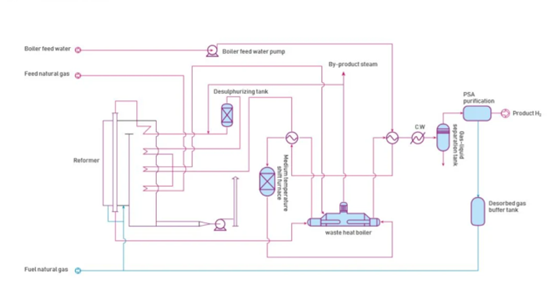

    Hydrogen production from natural gas is to perform the chemical reaction of pressurized and desulfurized natural gas and steam in a special reformer filling with catalyst and generate the reforming gas with H2, CO2 and CO, convert the CO in the converted gases to CO2 and then extract qualified H2 from the converted gases by pressure swing adsorption (PSA).

    Reaction Principle

    CH4+H2O→3H2+CO-Q
    CO+H2O→H2+CO2+Q
