Hydrogen Production Plant Methanol to Hydrogen Plant H2 Plant

Technical Features
Low material and energy consumption, low production cost

Mature technology, safe and reliable

Accessible raw material source, convenient transportation and storage, table price

Simple procedure, high automation, easy to operate

High intensification (standard modularization), delicate appearance, high adaptability on construction site
Pollution free

Feedstock : Gas mixture

Capacity: 50-200000Nm3/h

Pressure : 1.0~2.5MPa

H2 Purity: 99%~99.999%

Send email to us

Product Detail

Product Tags

Technical Features

Low material and energy consumption, low production cost
Mature technology, safe and reliable
Accessible raw material source, convenient transportation and storage, table price
Simple procedure, high automation, easy to operate
High intensification (standard modularization), delicate appearance, high adaptability on construction site
Pollution free

Product Parameters

Feedstock	Methanol
Capacity	10~50000Nm3/h
Pressure	0.4~3.0MPa
H2 Purity	99%~99.999%

Specification

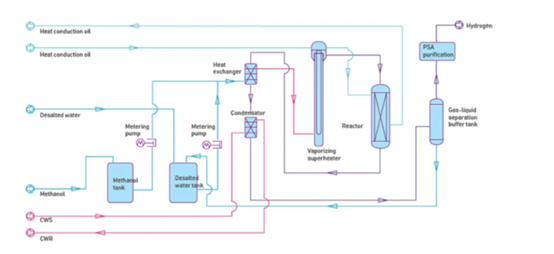

Methanol Cracking Hydrogen Production Technology uses methanol and water as raw materials, turn the methanol into mixed gas through catalyst and purifies the hydrogen through pressure swing adsorption (PSA) under a certain temperature and pressure.
