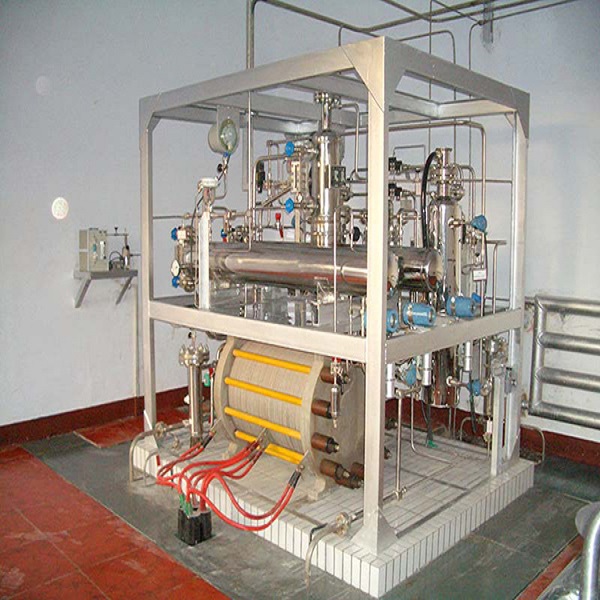

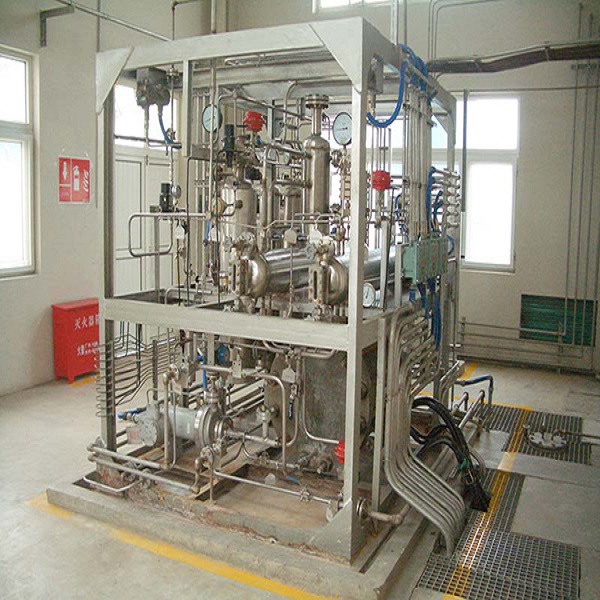

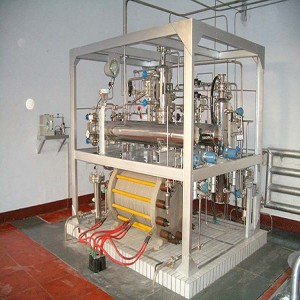

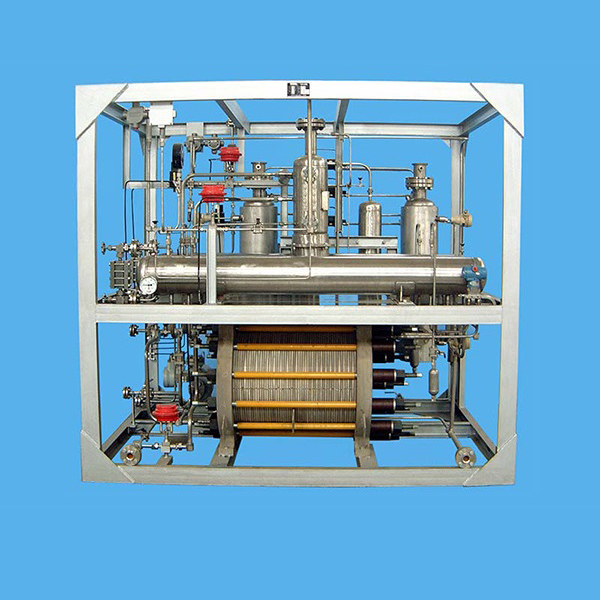

Hydrogen generator by electrolysis with refueling station

Technical parameters:

H2 Capacity: 10-600Nm3/h

H2 Purity: 99.999%

H2 Pressure: 1.6-3.2MPa (refueling pressure: 35/70MPa)

Working temperature: ≤85℃

Feature:

1. The integrated electrode structure is adopted inside the electrolytic cell, which improves the operating current density of the electrolytic cell, the cell voltage is stable, and the gas quality meets the standard;

2. The internal design of the electrolytic cell with core technology ensures energy saving and consumption reduction of equipment;


Product Detail

Product Tags

Product Video

Working Principal

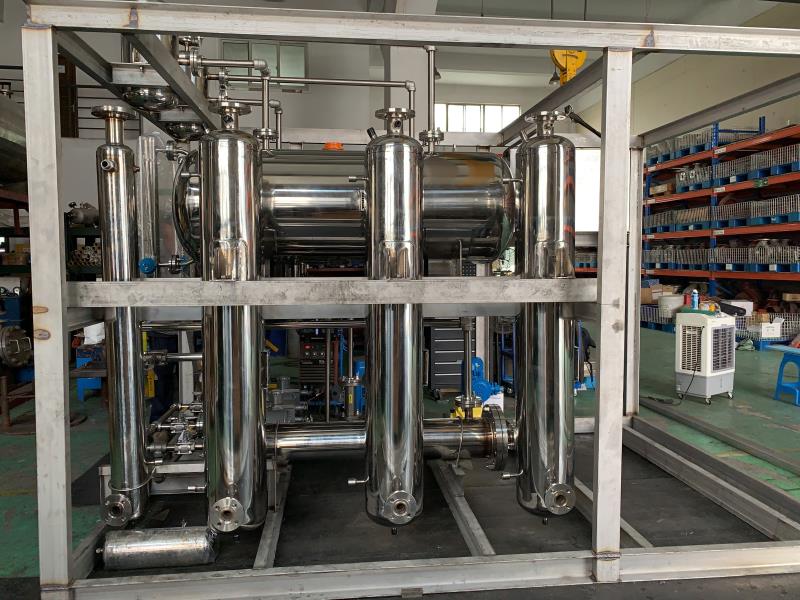

The equipment use water electrolysis to generate pure hydrogen and pure oxygen. By controlling the liquid level of hydrogen / oxygen tank, to ensure the hydrogen purity. It will go through the processes such as hydrogen washing, gas / liquid separation and cooling process to finally produce hydrogen.

working

Apply Scope

CHV series mobile hydrogen fueling station is designed according to client's need, this series CHR series bases on CHG series and fully uses solar energy, wind energy and night electricity to produce hydrogen. It adds metal hydrogen storage technology or compressed hydrogen storage technology. This series applies for fuel cell power station, hydrogen fueling station, industrial hydrogen usage and surplus heat utilization. It can assimilate the electricity from wind energy, solar energy and electricity at night. This hydrogen fuel station can solve the problem of renewable energy grid connected and also reduce the cost of producing hydrogen.

Structure Characteristics

1, Using hydrogen to store the electricity from renewable energy, the requirement for this series can be adjustable according to electricity load.
2, Stable and adjustable electricity for thermal power station.
3, It can easily achieve the function of combined heat and power.
4, Through renewable energy, it can reduce the cost of producing hydrogen and expand the application scope for hydrogen usage.

Specification

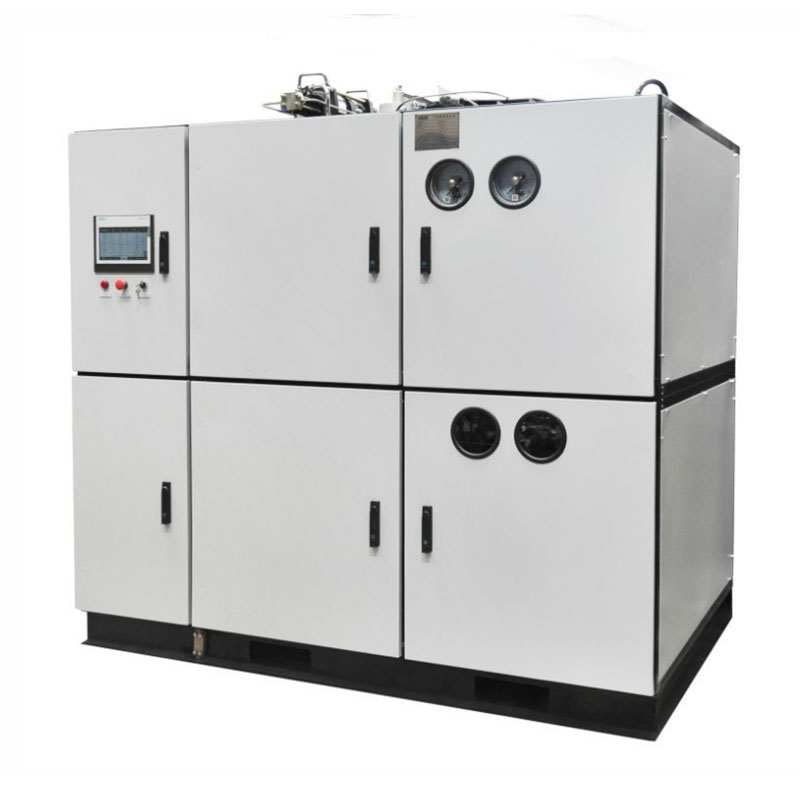

Hydrogen generator
MODEL H2 Capacity

Nm3/h

H2 purity Current

(A)

DC

(V)

Working temperature
CHR-10 10 99.999% 760 78 ≤85℃
CHR-20 20 99.999% 1240 90 ≤85℃
CHR-50 50 99.999% 1800 138 ≤85℃
CHR-100 100 99.999% 4600 110 ≤85℃
CHR-200 200 99.999% 6600 150 ≤85℃
CHR-300 300 99.999% 6600 225 ≤85℃
CHR-400 400 99.999% 8200 242 ≤85℃
CHR-500 500 99.999% 10500 235 ≤85℃
CHR-600 600 99.999% 10500 280 ≤85℃
Medium pressure hydrogen storage
Storage volume Pressure
40L, 200L, 400L

1-50m2

1.6 or 3.2MPa
Hydrogen refueling
Before/after pressure Refueling rate
From 1.6-3.2MPa

Final 35-70MPa

30min-24H
